Configuring OIDC SSO and Gateway Authentication with Oracle IAM Identity Domains

This guide explains how to integrate OpenID Connect (OIDC) Single Sign-On (SSO) for the Traefik Hub API Portal and Gateway authentication with Oracle IAM Identity Domains (OCI). It covers both user authentication for portals (SSO) and secure gateway access using JWT tokens.

Prerequisites​

Configure OIDC SSO for the Traefik Hub API Portal withOracle IAM Identity Domains​

Register the Application in Oracle IAM​

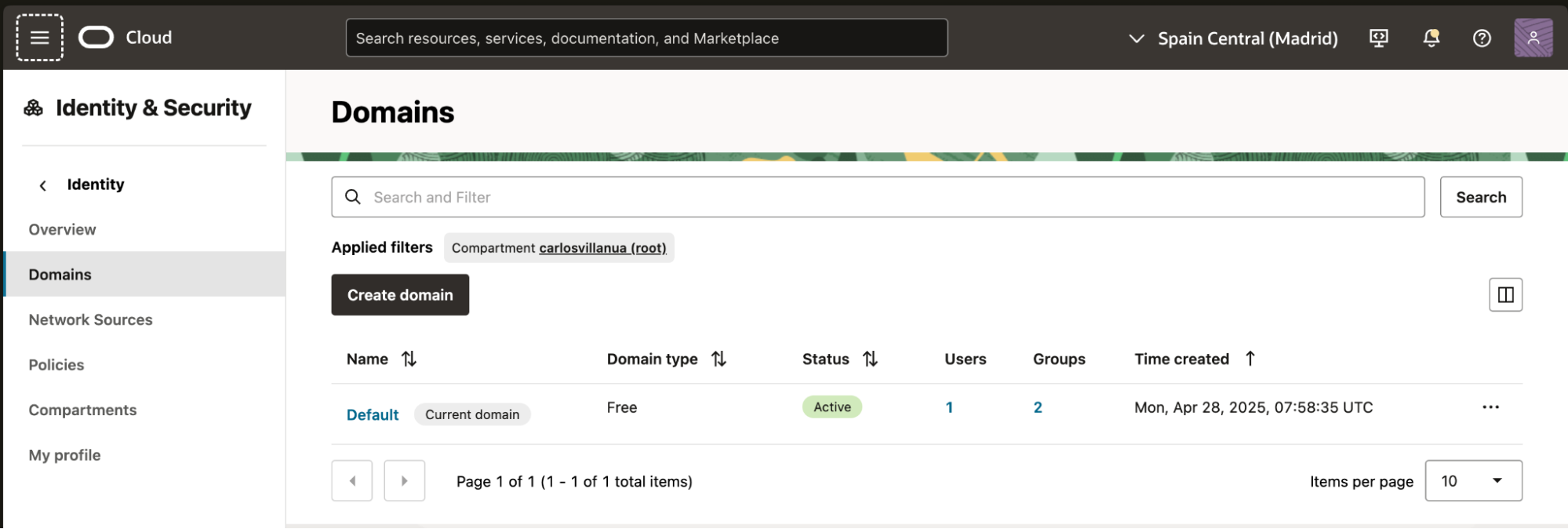

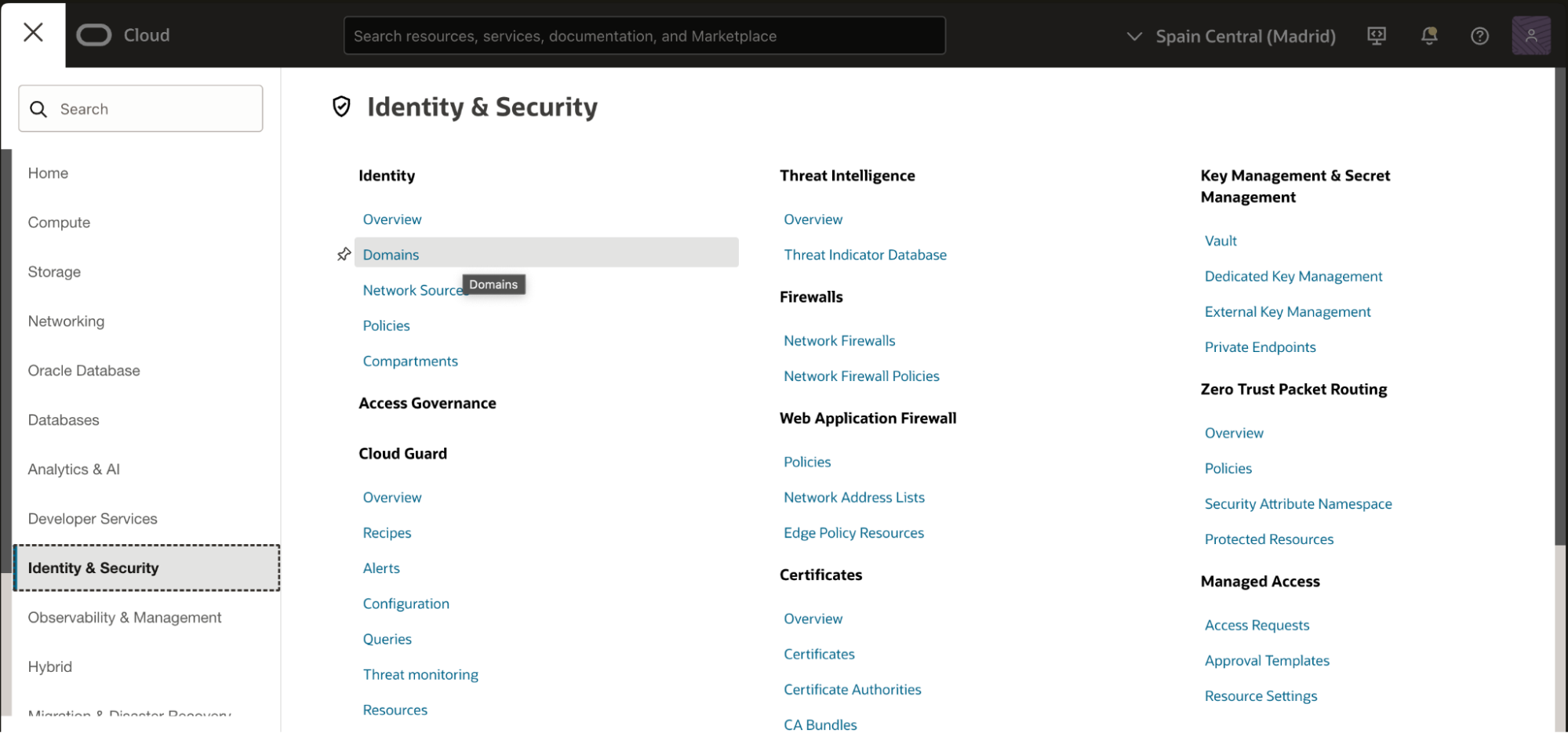

Log in to the Oracle Cloud Console and navigate to Identity & Security > Domains.

Oracle IAM - Domains

Select your Identity Domain and it should open the domain details page.

Oracle IAM - Domain

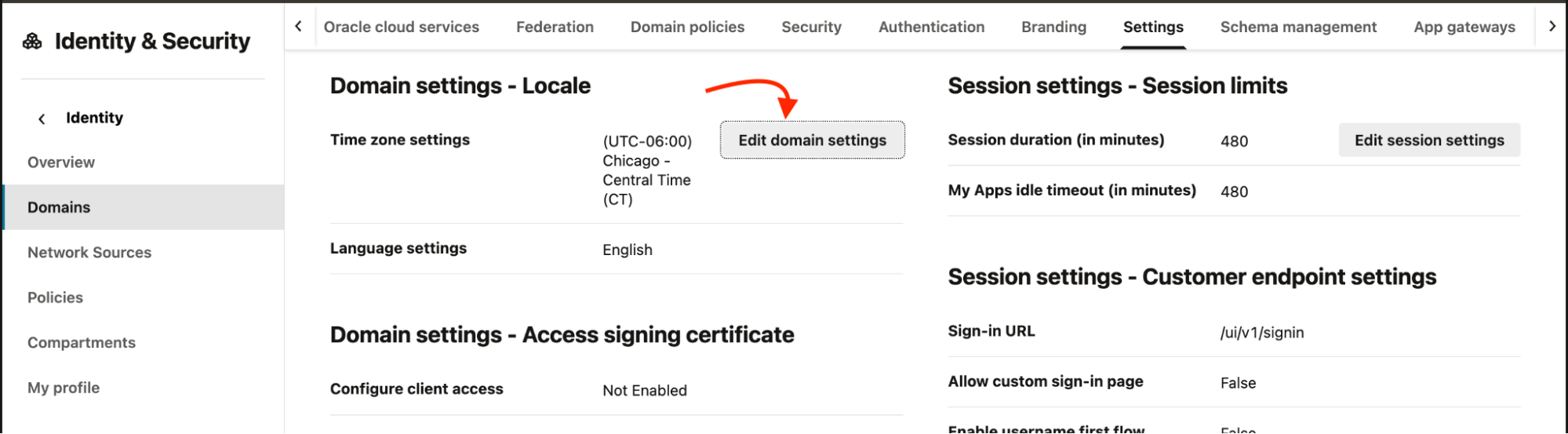

Next, Go to the Settings tab and select Edit domain settings

Oracle IAM - Domain Settings

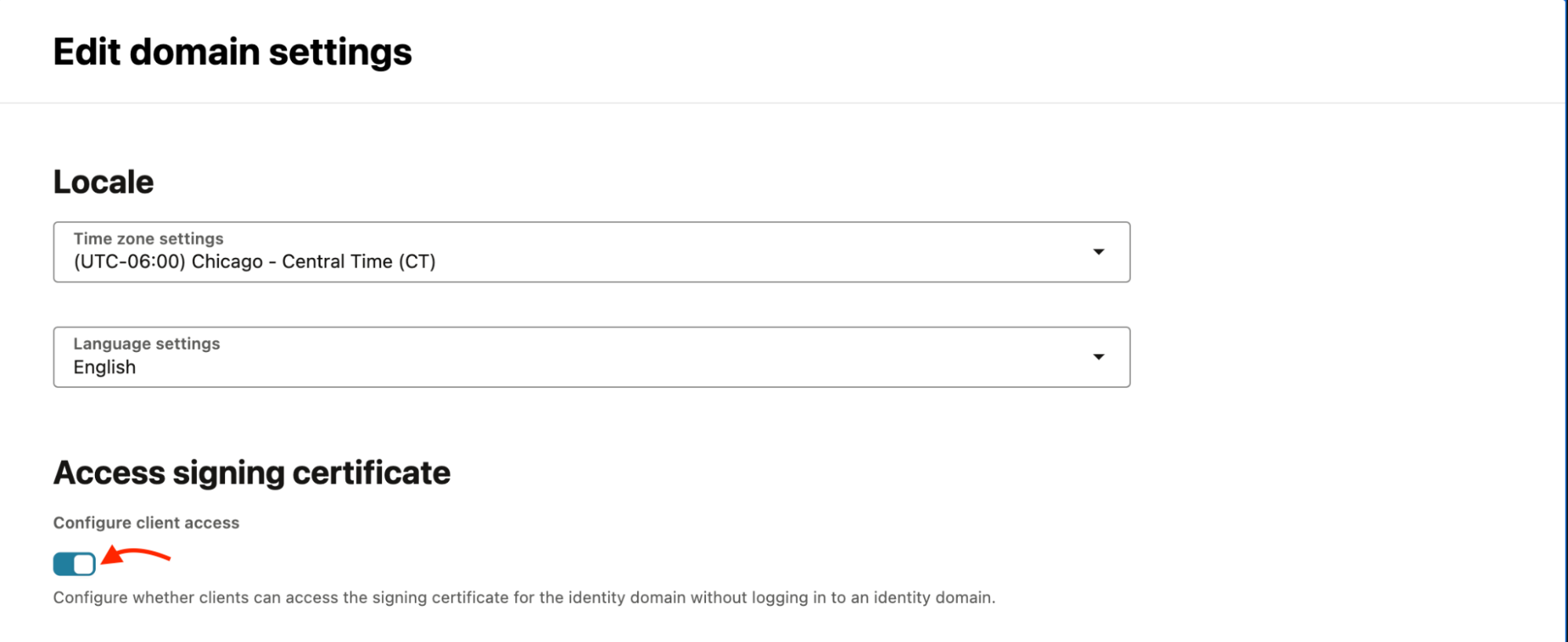

In the domain settings, enable Configure client access and save changes.

Oracle IAM - Domain Settings

Create Users and Groups​

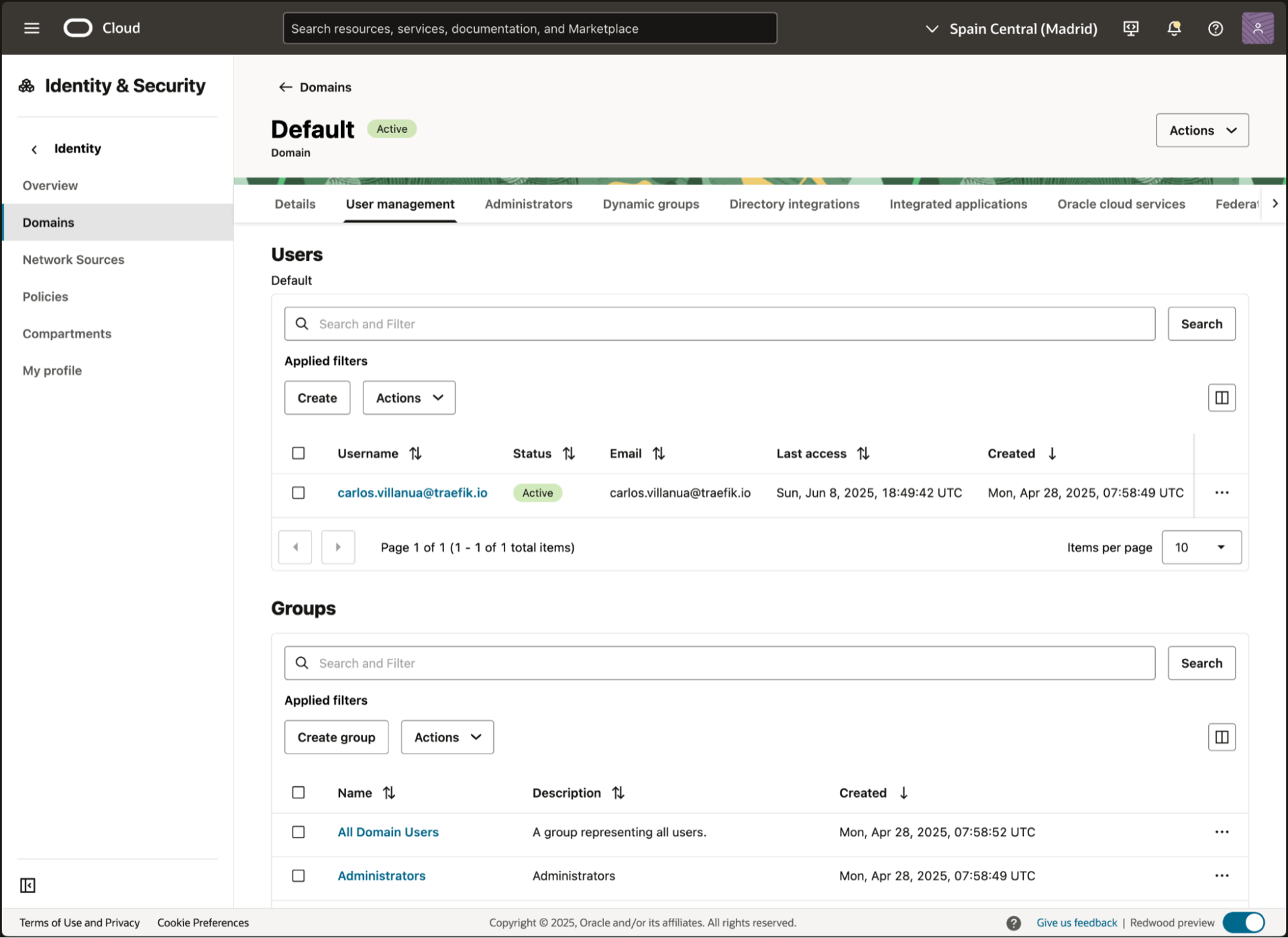

In the domains menu, Navigate to the User Management tab, create users and groups that correspond to those in your Traefik Portal.

Oracle IAM - User Management

Add an Application​

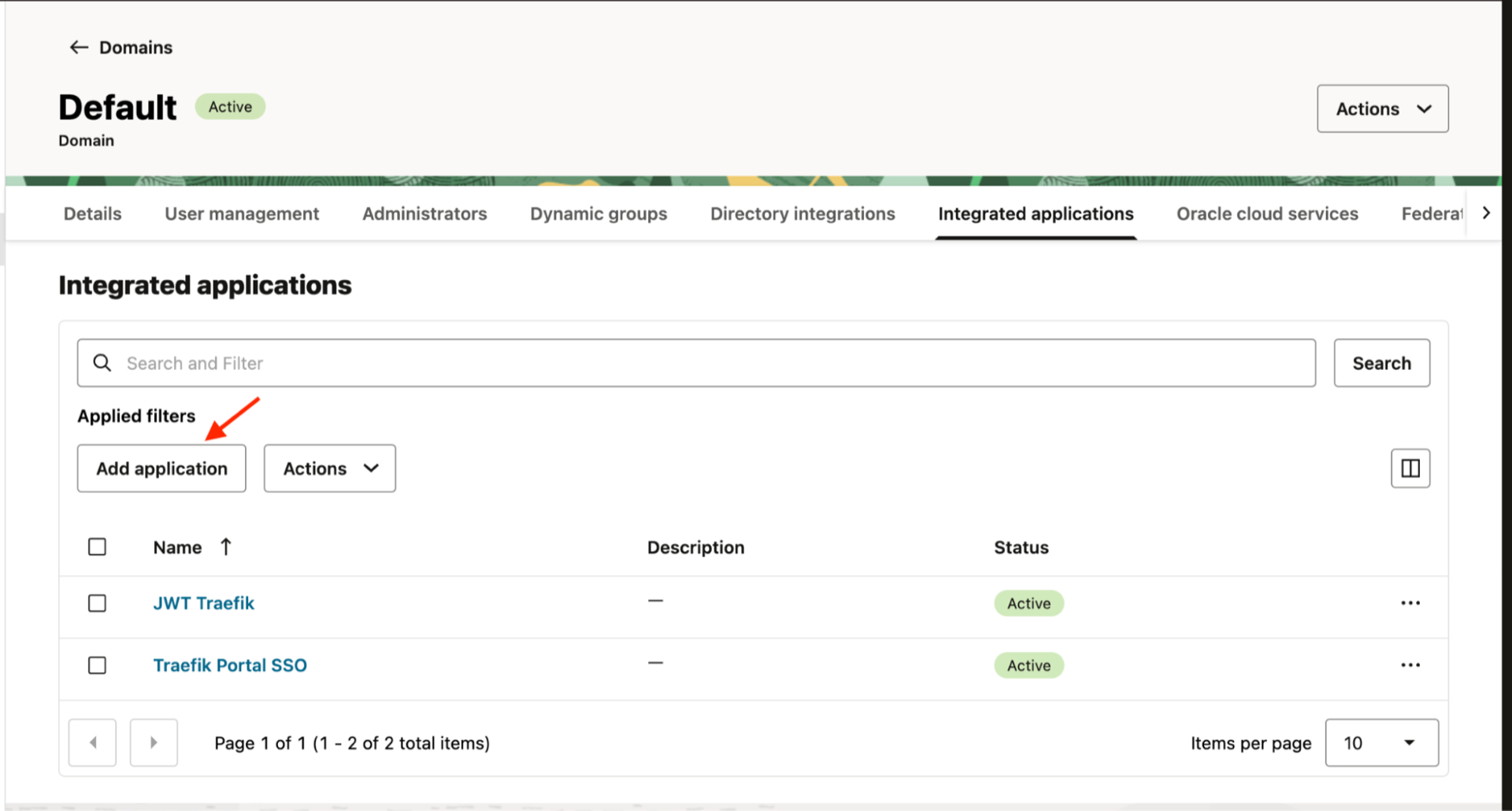

In the domains menu, navigate to the Integrated Applications tab and select Add Application.

Oracle IAM - Add Application

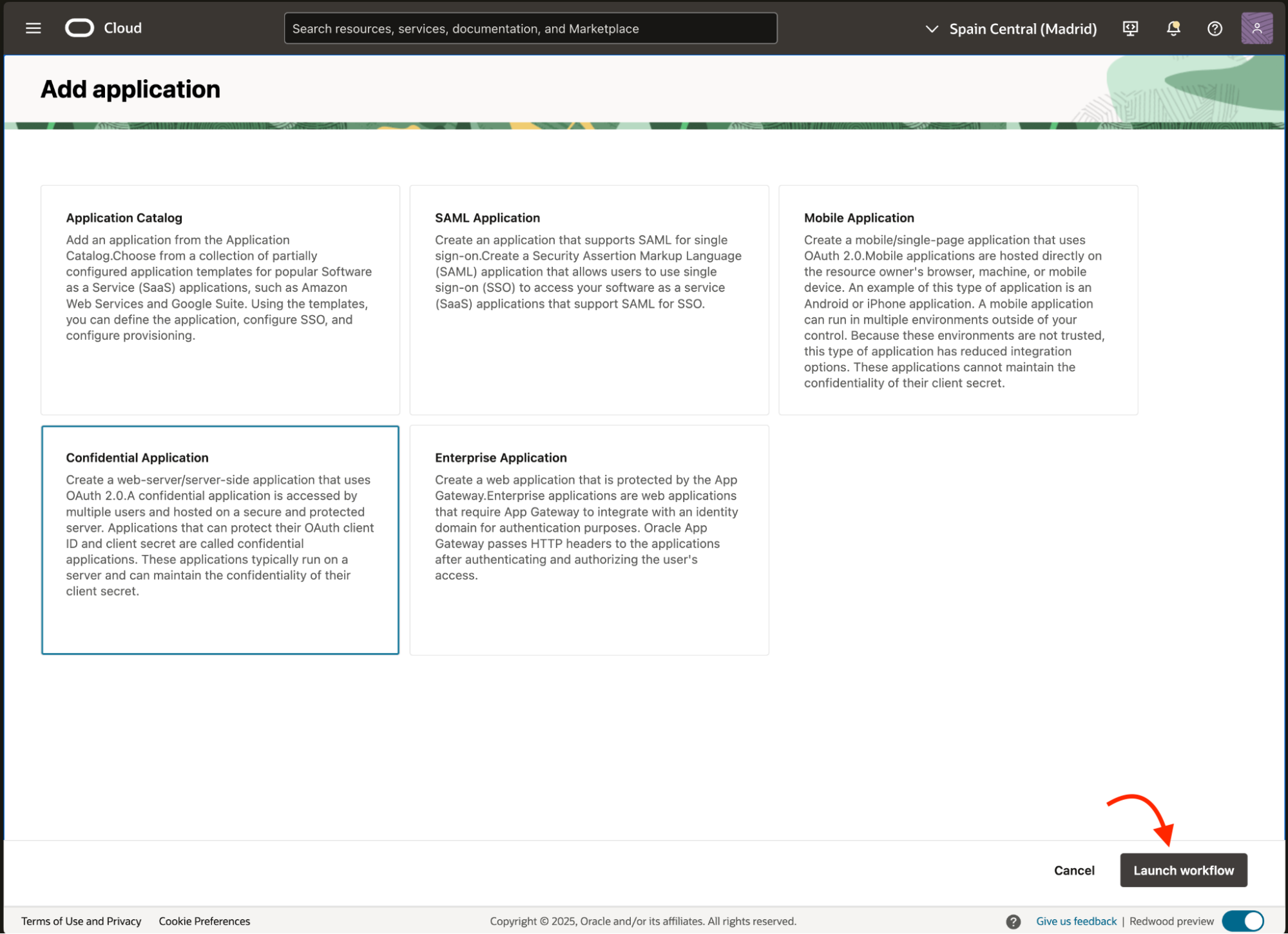

Next, Select Confidential Application and Launch workflow.

Oracle IAM - Add Application

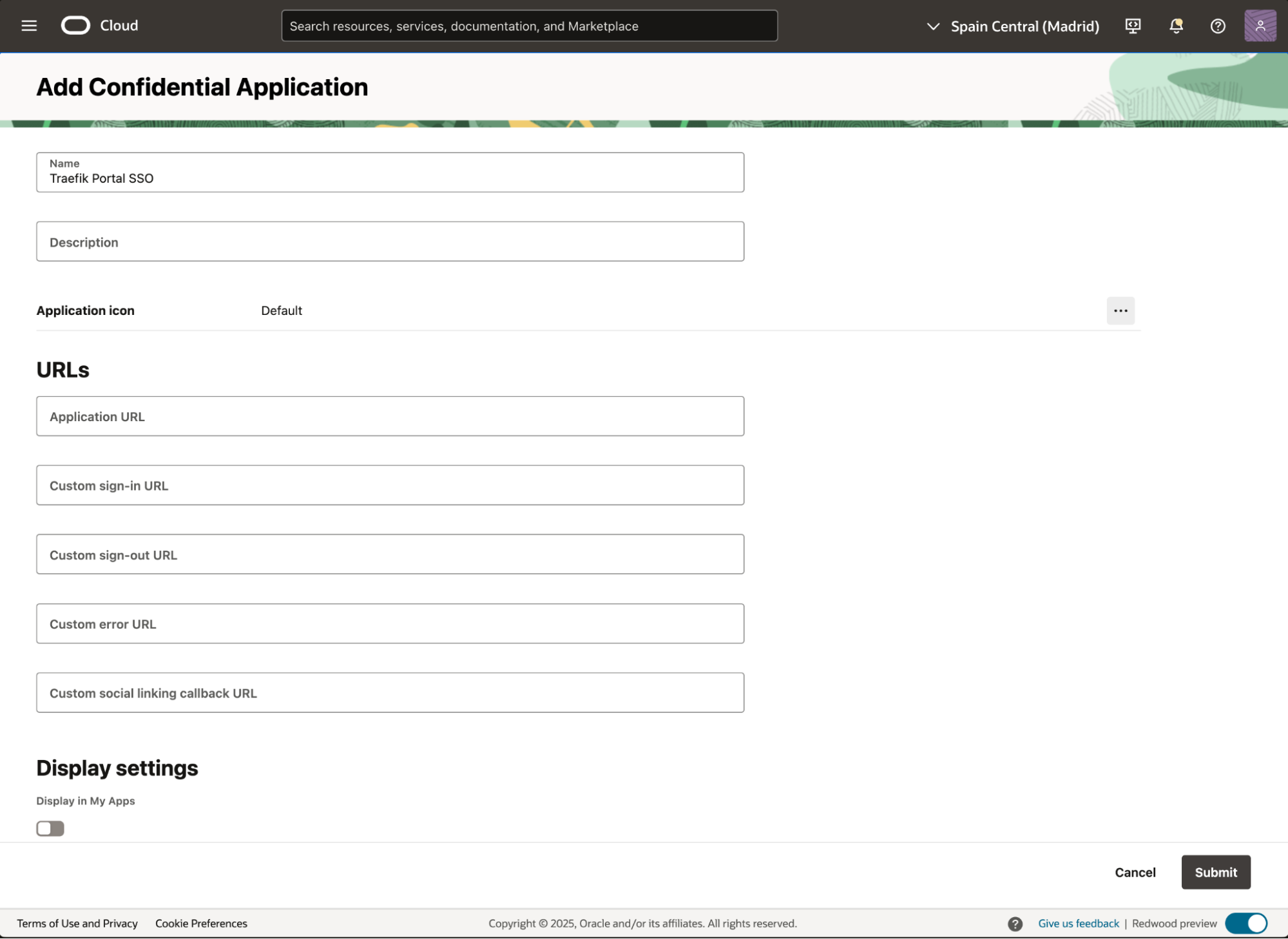

In the displayed form, enter the application details (only the Name field is required).

Oracle IAM - Add Application

Next, select Next to proceed to OAuth configuration.

Configure OAuth​

After creating the application, you will be redirected to the application details page to configure OAuth and Web tier policy.

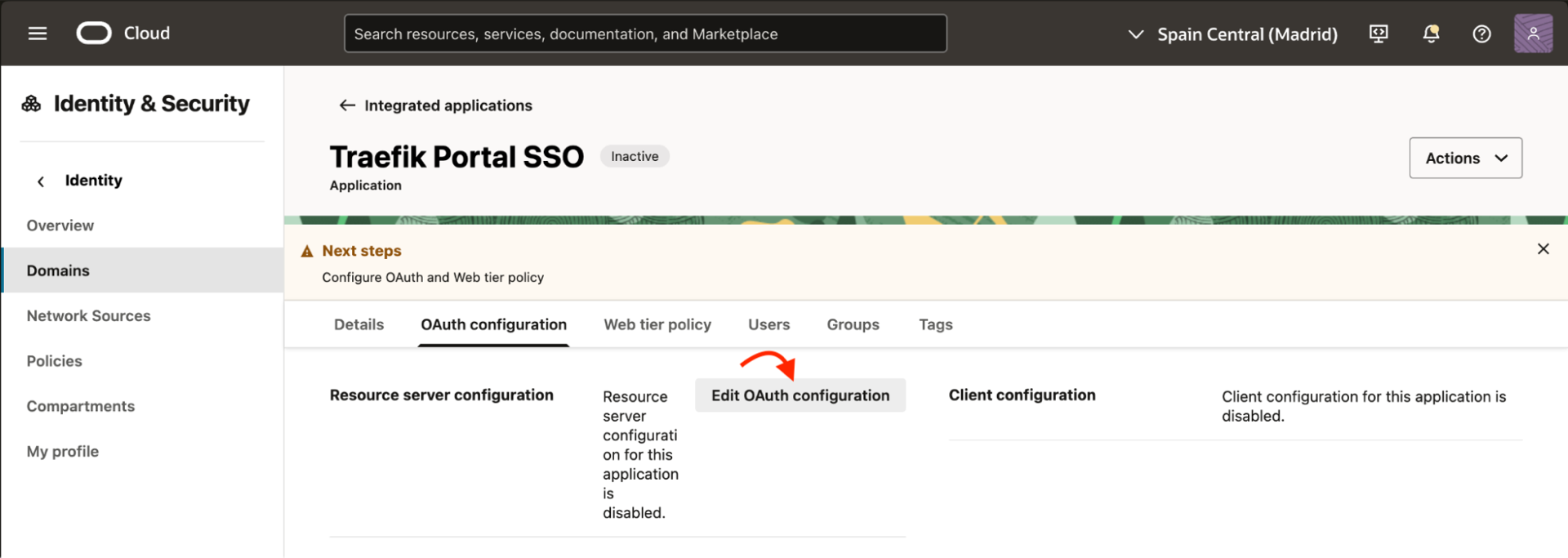

Next, navigate to the OAuth configuration tab, select Edit OAuth configuration.

Oracle IAM - Add Application

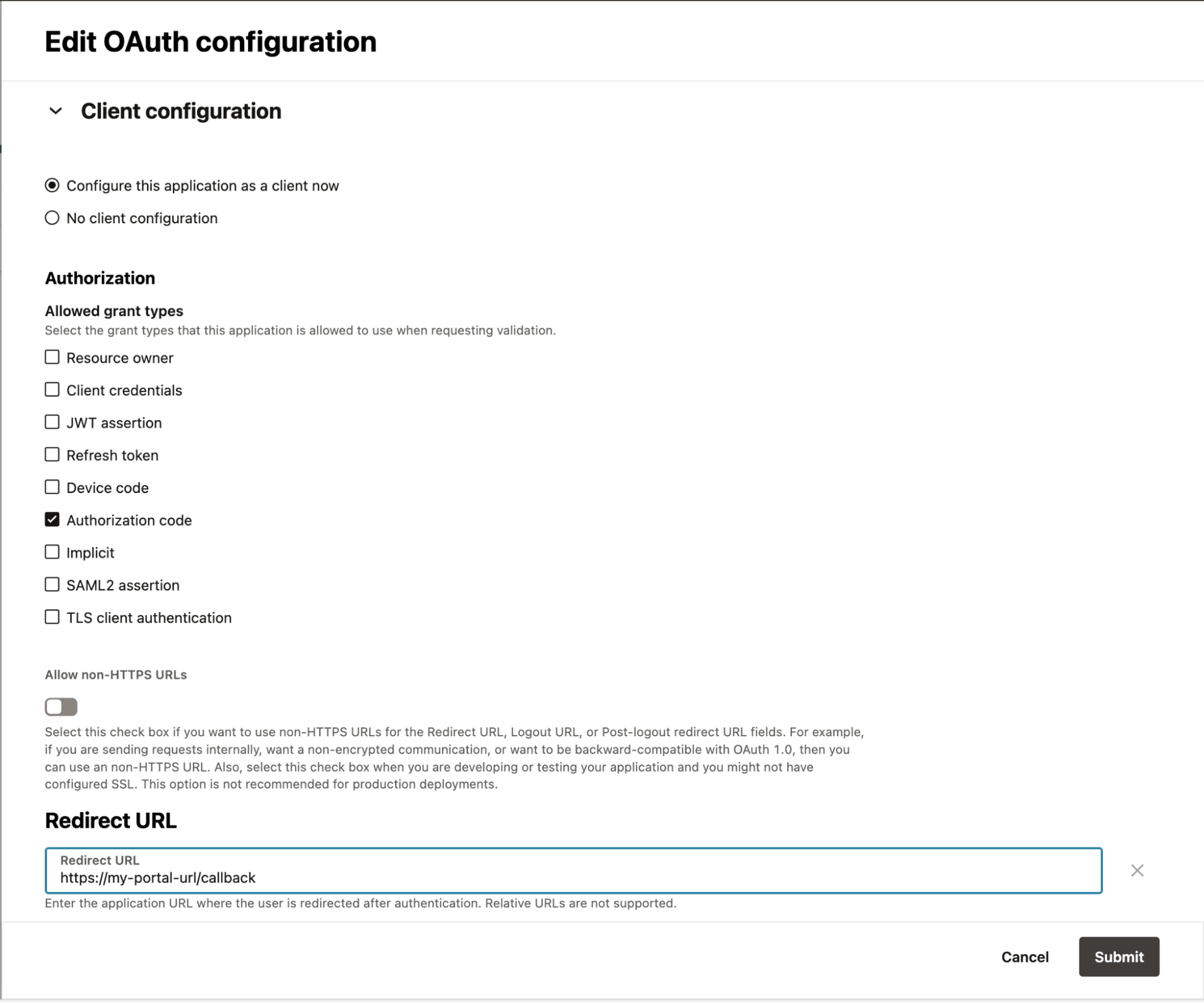

In the OAuth configuration menu, select the following options:

  • Configure this application as a client now
  • In the authorization allowed grant types list, select Authorization code
  • In the redirect URIs field, enter the following:
    • https://<portal URL>/callback

Oracle IAM - Add Application

Select Submit to save the changes.

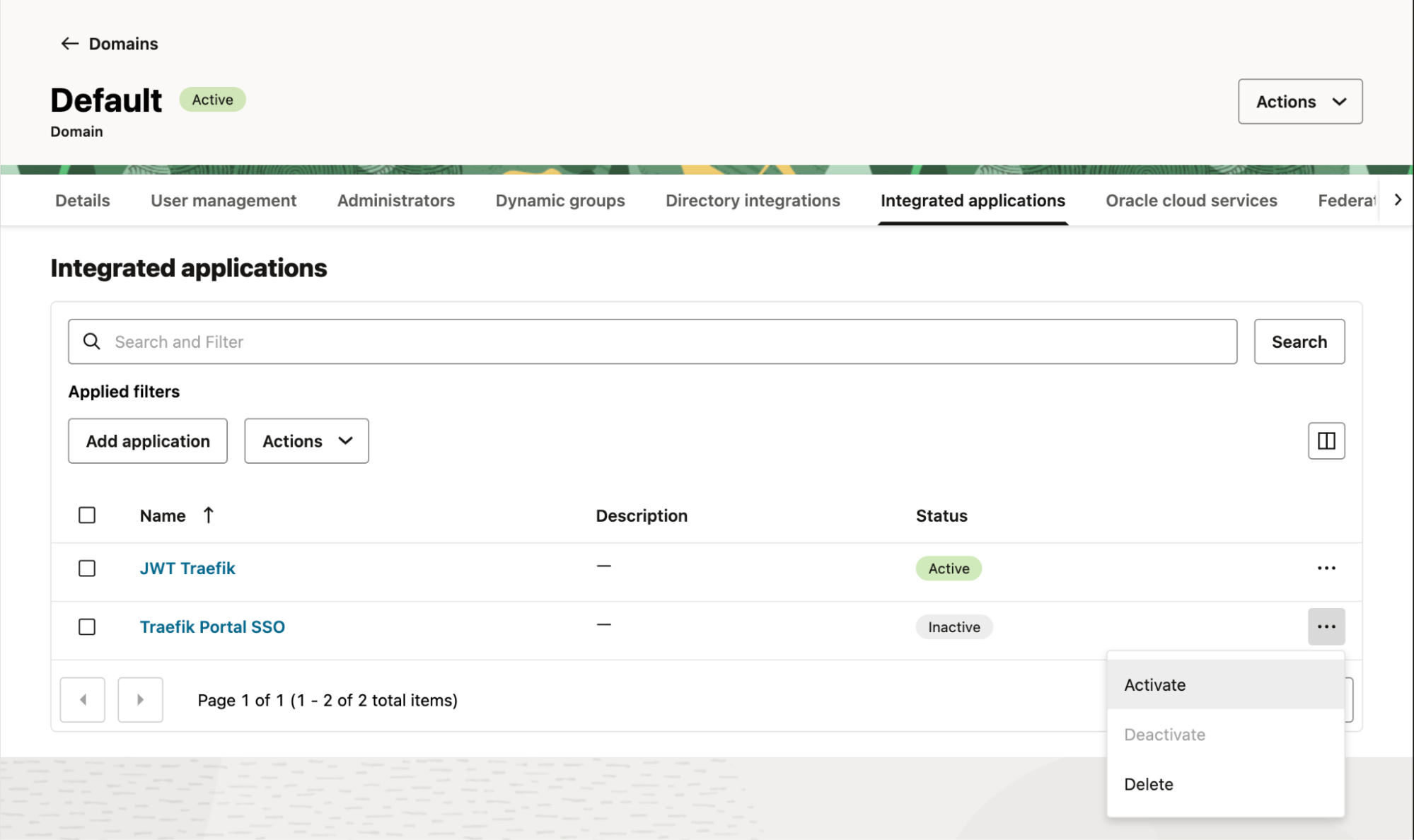

In the applications menu, select the ... icon next to the application you created and select Activate.

Oracle IAM - Add Application

Retrieve Client Credentials​

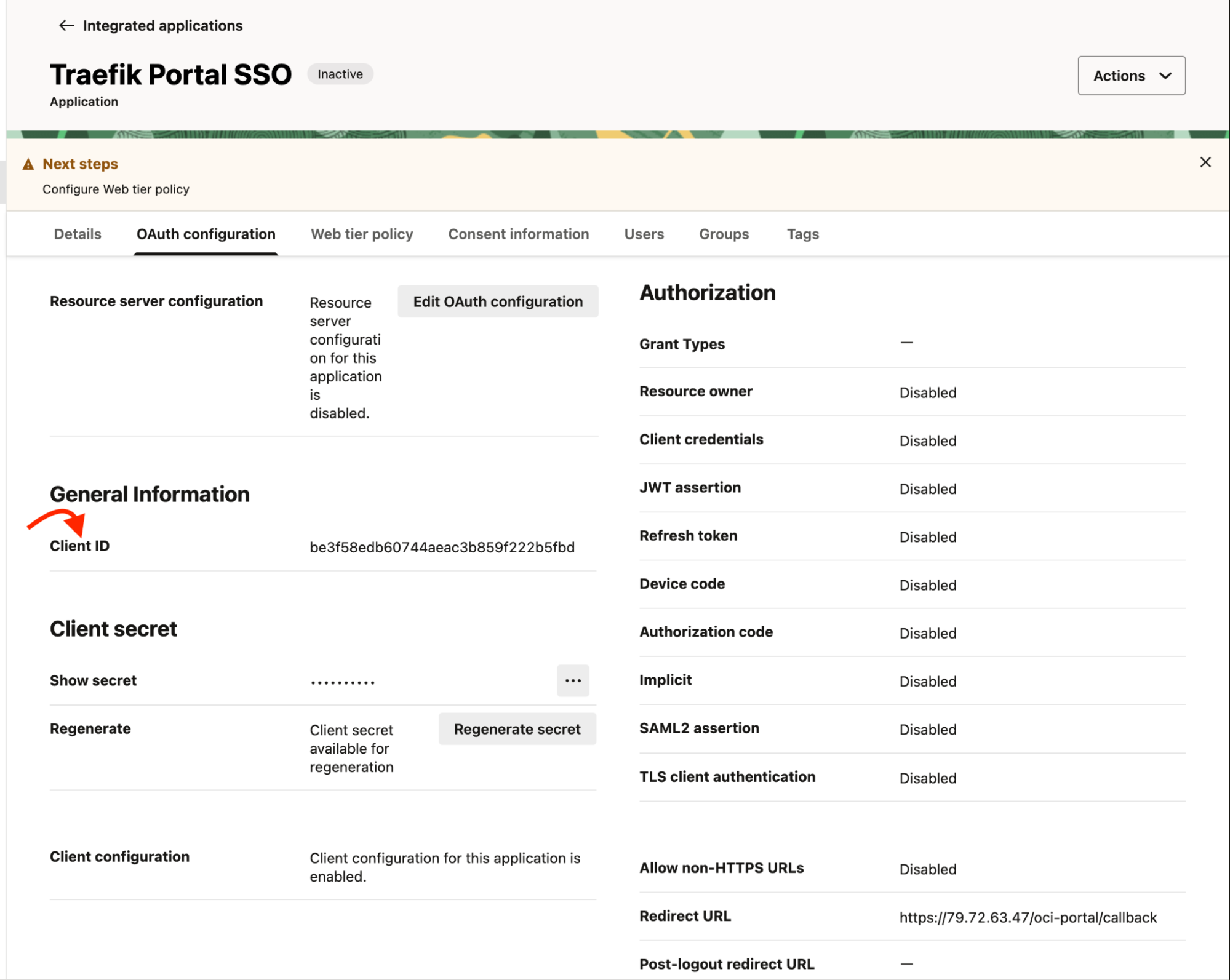

To retrieve the client credentials, select the application you created and navigate to the OAuth configuration tab.

In the OAuth configuration menu, Copy the Client ID and Client Secret.

Oracle IAM - Client Credentials

info

The Client Secret is generated automatically, you can regenerate it if needed.

Set the Issuer​

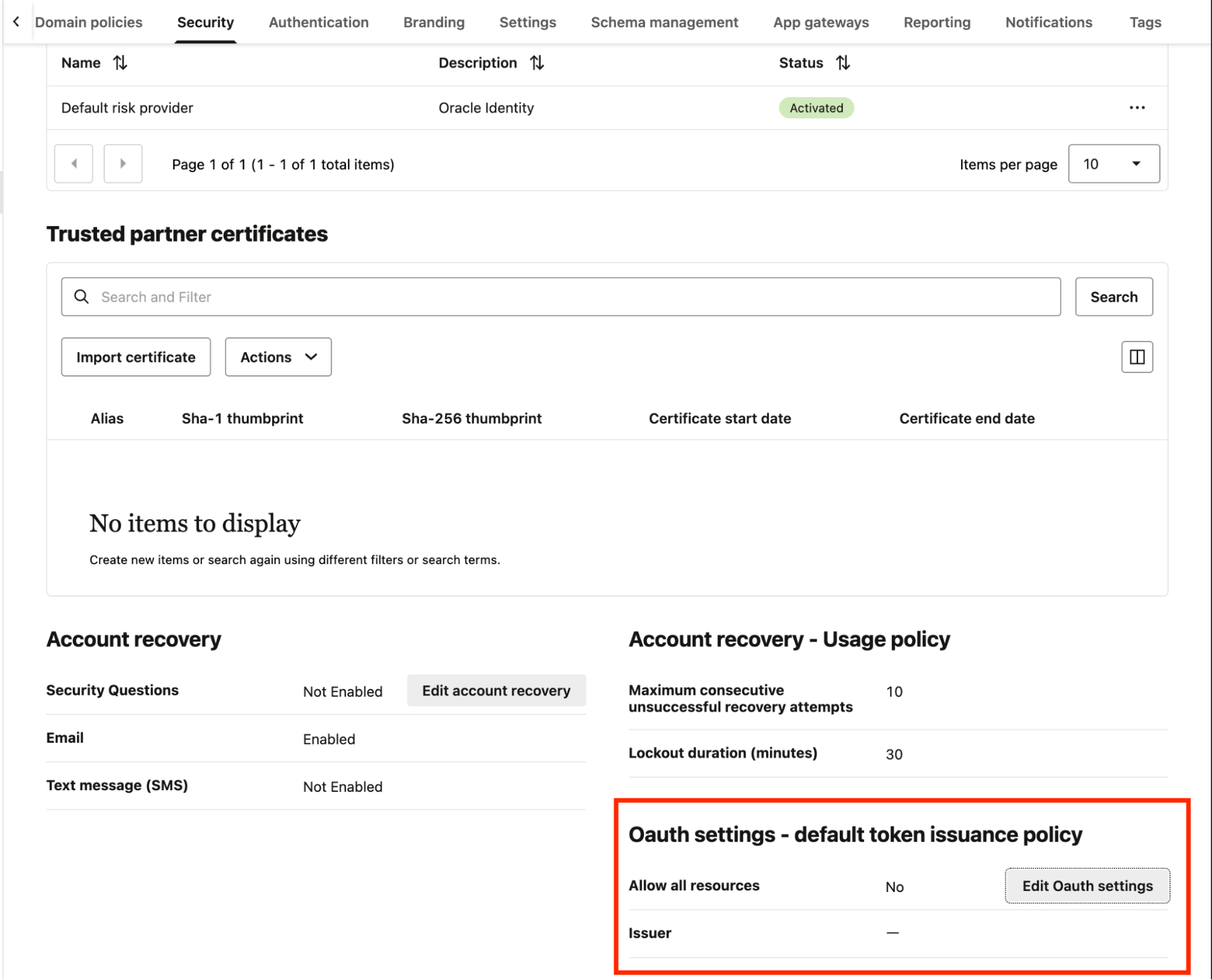

In the domains menu, navigate to the Security tab and scroll down to the Oauth settings section.

Oracle IAM - Oauth settings

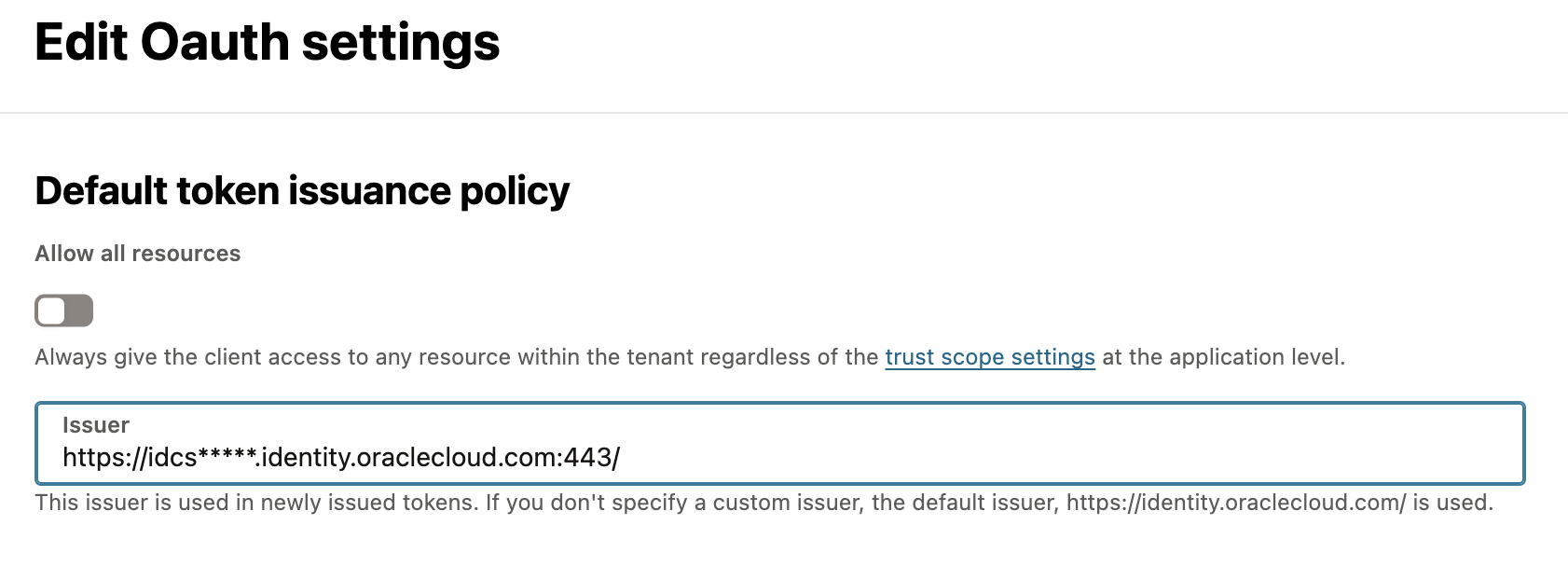

Next, select Edit OAuth settings and add the following:

  • Issuer URL: https://<Your_Domain_URL>.identity.oraclecloud.com

Oracle IAM - Oauth settings

info

You can find the domain_url under Domains -> Details

Select Save Changes.

Configure SSO access to the Portal in Traefik Hub​

To configure SSO access to the Traefik Hub API Portal, follow the steps in the Traefik Hub OIDC documentation:

Configure OIDC Gateway Authentication with JWT Tokens In Oracle IAM Identity Domains​

To enable gateway access with JWT tokens, ensure the application allows the Client Credentials grant type.

Modify or Create the Application for Client Credentials​

Create a new application using the steps above and edit the OAuth configuration to include the Client Credentials grant type.

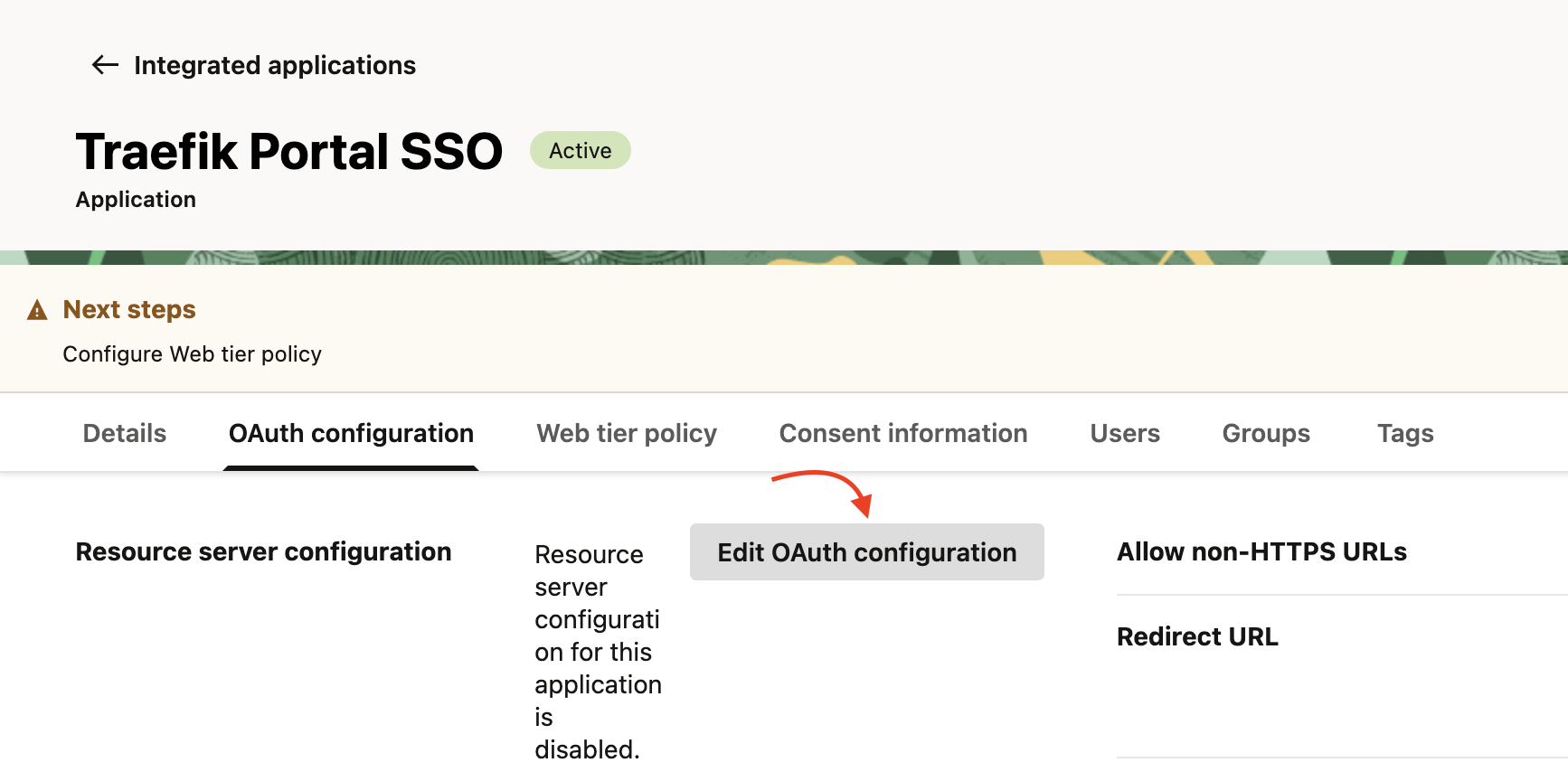

To edit the OAuth configuration, select the application you created and navigate to the OAuth configuration tab.

In the OAuth configuration menu, select Edit OAuth configuration.

Oracle IAM - OAuth configuration

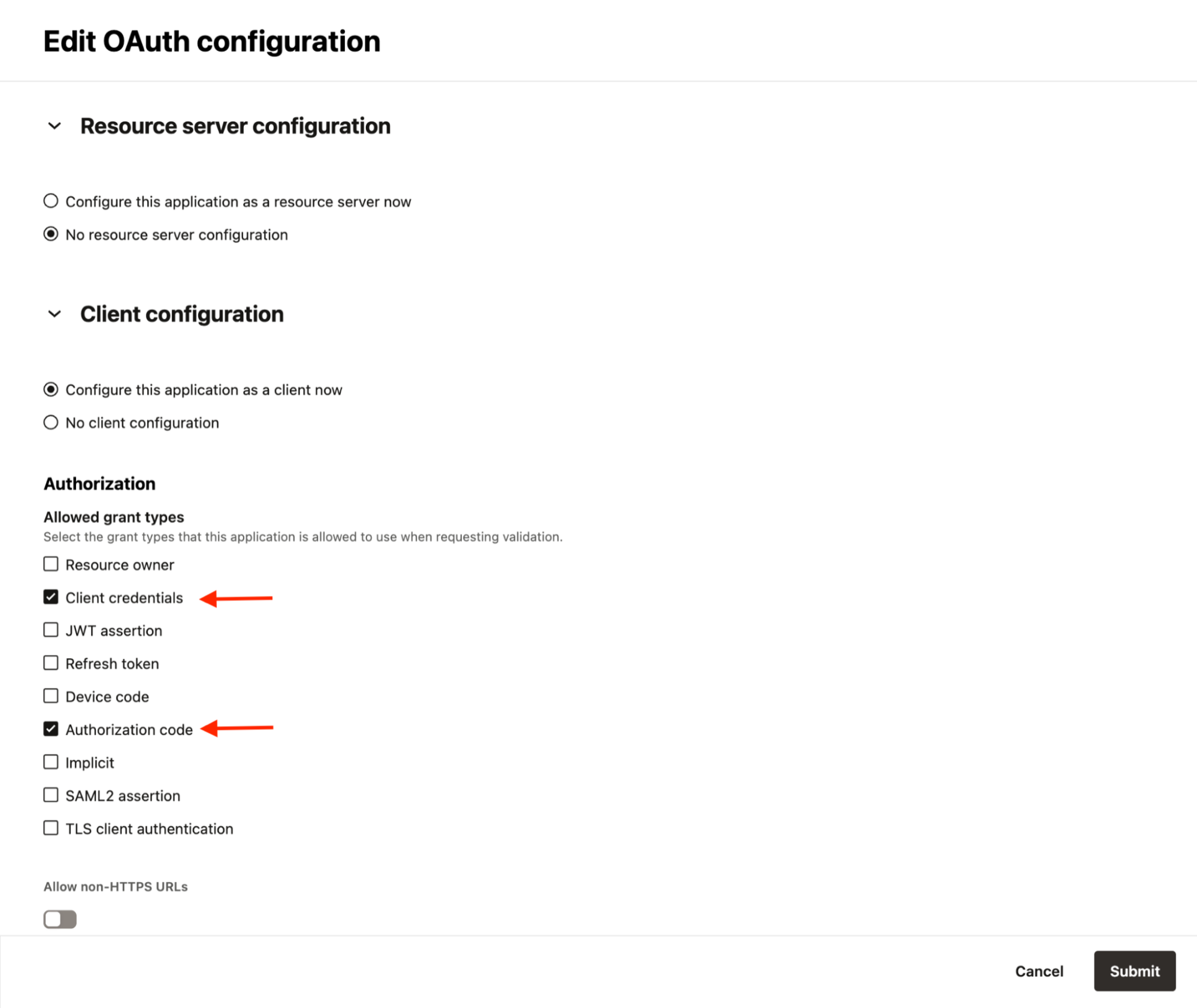

In the OAuth configuration settings, choose Client Credentials from the list of allowed grant types.

Oracle IAM - OAuth configuration

info

Ensure Authorization Code grant type is still enabled for portal SSO.

Test Token Retrieval​

You can test the token retrieval by making the following request:

curl -X POST "<Your_Domain_URL>.identity.oraclecloud.com" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials" \
  -d "client_id=YOUR_CLIENT_ID" \
  -d "client_secret=YOUR_CLIENT_SECRET" \
  -d "scope=urn:opc:idm:__myscopes__"

Configure Gateway JWT Authentication​

To configure gateway JWT authentication, retrieve the JWKs URI from:

curl -X GET "https://<your-idcs-url>/.well-known/openid-configuration"

The JWKs URI will look like this:

https://idcs-****.identity.oraclecloud.com:443/admin/v1/SigningCert/jwk

Finally, continue the gateway JWT authentication configuration following the steps in the Traefik Hub OIDC documentation:
