APIPortalAuth

Configure API Portal authentication with the APIPortalAuth Resource.

Introduction​

The APIPortalAuth resource provides a declarative way to configure authentication for your API Portal in Traefik Hub API Management. This resource works in both online and offline environments, allowing you to manage portal authentication settings through Kubernetes manifests.

APIPortalAuth enables per-namespace portal authentication overrides, allowing you to run different portal authentication methods on the same gateway by placing portals in different namespaces. Now your workspace settings act as a "global default" that you can override on a per-namespace basis with CRDs.

When defined, the CRD configuration takes precedence over workspace-level dashboard settings, providing Infrastructure as Code capabilities for API Portal authentication configuration and is essential for offline environments where connectivity to the Traefik Hub Online Dashboard is restricted or unavailable.

Example Use Case: You can now have a customer-facing portal in the public namespace using Auth0 authentication, an internal developer portal in the internal namespace using Azure AD authentication, and a partner portal in the partners namespace using Keycloak authentication - all on the same gateway!

APIPortalAuth supports two authentication methods:

OpenID Connect (OIDC) Authentication​

  • Configurable JWT claim mappings to user attributes
  • Flexible attribute synchronization from the OIDC provider (online mode only)
  • Support for popular identity providers like Auth0, Azure AD, and Keycloak

LDAP Authentication​

  • Direct authentication against LDAP servers (OpenLDAP, Active Directory, etc.)
  • Static group retrieval via memberOf attribute
  • Configurable LDAP attribute mappings to user attributes
  • Flexible attribute synchronization from LDAP (online mode only)
  • Cookie-based session management for portal users

How APIPortalAuth Works​

APIPortalAuth authenticates users accessing your API Portal using either OpenID Connect (OIDC) or LDAP. Each APIPortalAuth resource is namespace-scoped and must be explicitly referenced by an APIPortal resource in the same namespace.

The authentication method you choose determines how users log into the portal:

  • OIDC: Users are redirected to an external identity provider for authentication, then redirected back to the portal

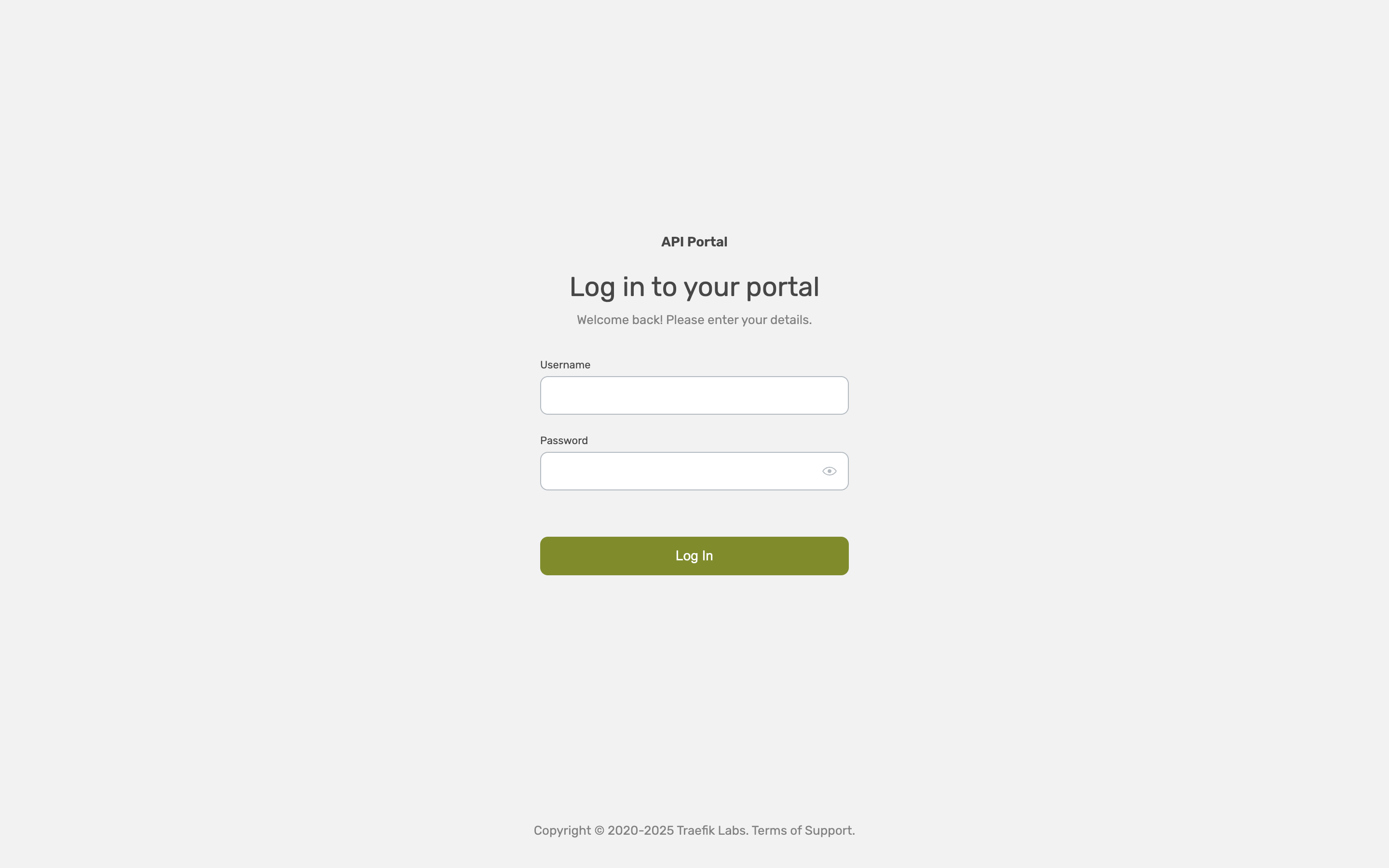

  • LDAP: Users enter their LDAP credentials directly on the portal login page, which are validated against the LDAP server

Configuration Example​

Configure APIPortalAuth with either OIDC or LDAP authentication.

OIDC authentication provides secure user authentication using OpenID Connect protocol.

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: oidc-auth
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.example.com
    secretName: oidc-credentials
    claims:
      groups: groups
      userId: sub
      email: email
      firstname: given_name
      lastname: family_name
    scopes:
      - openid
      - profile
      - email
      - groups

Configuration Options​

Important

Exactly one of oidc or ldap must be specified in the APIPortalAuth configuration.

OIDC Configuration Options​

FieldDescriptionRequiredDefault
oidcOIDC configuration objectYes (if not using LDAP)-
oidc.issuerUrlOIDC provider issuer URLYes-
oidc.secretNameName of Kubernetes Secret containing clientId and clientSecretYes-
oidc.claimsJWT claim mappings for user attributesYes-
oidc.claims.groupsJWT claim for user groups (required for authorization)Yes-
oidc.claims.userIdJWT claim for user ID mappingNo-
oidc.claims.emailJWT claim for user emailNo-
oidc.claims.firstnameJWT claim for user first nameNo-
oidc.claims.lastnameJWT claim for user last nameNo-
oidc.claims.companyJWT claim for user companyNo-
oidc.scopesOAuth2 scopes to requestNo-
oidc.syncedAttributesJWT claims to extract and sync to the Traefik Hub platform during authentication (online mode only). Each attribute must correspond to a configured claim. Valid values: groups, userId, firstname, lastname, email, company (max 6 items)No-
OIDC Validation Notes
  • The issuerUrl must be a valid URL format
  • The secretName must be 253 characters or less
  • The syncedAttributes can contain at most 6 items and must be from the allowed values
  • Each attribute in syncedAttributes must correspond to a configured claim field

LDAP Configuration Options​

FieldDescriptionRequiredDefault
ldapLDAP configuration objectYes (if not using OIDC)-
ldap.urlLDAP server URL, including protocol (ldap:// or ldaps://) and port (for example, ldaps://ldap.example.com:636)Yes-
ldap.baseDNBase domain name for bind and search queries (for example, dc=example,dc=org)Yes-
ldap.bindDNDomain name to bind for authentication when running in search mode. If empty, anonymous bind is used (not recommended for production)No-
ldap.bindPasswordSecretNameName of Kubernetes Secret containing the bind password (must be the value of a key named password)No-
ldap.attributeLDAP object attribute used to form bind DN. Bind DN format: <attribute>=<username>,<baseDN>Nocn
ldap.searchFilterLDAP search filter query. Use %s as placeholder for username (for example, (&(objectClass=inetOrgPerson)(uid=%s)))No-
ldap.startTLSEnable StartTLS when initializing connection with LDAP serverNofalse
ldap.insecureSkipVerifySkip TLS certificate verification (not recommended for production)Nofalse
ldap.certificateAuthorityPEM-encoded certificate for TLS connection with custom Certificate AuthorityNo-
ldap.groupsGroup extraction configurationNo-
ldap.groups.memberOfAttributeLDAP attribute containing group memberships (for example, memberOf)NomemberOf
ldap.attributesLDAP attribute mappings for user attributesNo-
ldap.attributes.userIdLDAP attribute for user ID mappingNo-
ldap.attributes.firstnameLDAP attribute for user first nameNo-
ldap.attributes.lastnameLDAP attribute for user last nameNo-
ldap.attributes.emailLDAP attribute for user emailNo-
ldap.attributes.companyLDAP attribute for user companyNo-
ldap.syncedAttributesArray of user attributes to synchronize with Traefik Hub platform (online mode only). Each item must be one of: groups, userId, firstname, lastname, email, company.No-
LDAP Validation Notes
  • The url must be a valid LDAP URL starting with ldap:// or ldaps://
  • The bindPasswordSecretName must reference a secret with a password key
  • The syncedAttributes can contain at most 6 items and must be from the allowed values
  • Each attribute in syncedAttributes must have a corresponding mapping in the attributes section
  • Groups are extracted statically from the memberOf attribute; dynamic group queries are not supported

Secret Configuration​

OIDC Client Secret​

When using OIDC authentication, create a Kubernetes Secret containing the OIDC client credentials:

kubectl create secret generic oidc-client-secret \
  --from-literal=clientId=your-client-id \
  --from-literal=clientSecret=your-client-secret \
  -n apps

LDAP Bind Password Secret​

When using LDAP authentication with a bind DN, create a Kubernetes Secret containing the bind password:

kubectl create secret generic ldap-bind-secret \
  --from-literal=password=your-bind-password \
  -n apps
Note

The LDAP bind password secret must contain a key named password.

Advanced Configuration​

JWT Claim Mapping​

Configure how JWT claims from your OIDC provider map to user attributes:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: custom-claims
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.example.com
    secretName: oidc-credentials
    claims:
      groups: https://example.com/groups      # Custom groups claim
      userId: user_id                         # Custom user ID claim
      email: user_email                       # Custom email claim
      company: organization                   # Custom company claim
      firstname: first_name                   # Custom first name claim
      lastname: last_name                     # Custom last name claim

OAuth2 Scopes​

Configure the OAuth2 scopes requested during authentication:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: scoped-auth
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.example.com
    secretName: oidc-credentials
    scopes:
      - openid          # Always required for OIDC
      - profile         # For basic profile information
      - email           # For email claim
      - groups          # For groups claim
    claims:
      groups: groups
      email: email

LDAP Attribute Mapping​

Configure how LDAP attributes map to user attributes in Traefik Hub:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: ldap-custom-attributes
  namespace: apps
spec:
  ldap:
    url: ldaps://ldap.example.com:636
    baseDN: dc=example,dc=org
    bindDN: cn=admin,dc=example,dc=org
    bindPasswordSecretName: ldap-bind-secret
    searchFilter: (&(objectClass=inetOrgPerson)(uid=%s))
    attributes:
      userId: uid              # Map LDAP 'uid' to user ID
      email: mail              # Map LDAP 'mail' to email
      firstname: givenName     # Map LDAP 'givenName' to first name
      lastname: sn             # Map LDAP 'sn' to last name
      company: o               # Map LDAP 'o' (organization) to company

LDAP TLS Configuration​

Configure secure TLS connections to your LDAP server:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: ldap-tls
  namespace: apps
spec:
  ldap:
    url: ldaps://ldap.example.com:636  # Use ldaps:// for TLS
    baseDN: dc=example,dc=org
    bindDN: cn=admin,dc=example,dc=org
    bindPasswordSecretName: ldap-bind-secret

LDAP Group Configuration​

Configure how groups are extracted from LDAP:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: ldap-groups
  namespace: apps
spec:
  ldap:
    url: ldaps://ldap.example.com:636
    baseDN: dc=example,dc=org
    bindDN: cn=admin,dc=example,dc=org
    bindPasswordSecretName: ldap-bind-secret
    searchFilter: (&(objectClass=inetOrgPerson)(uid=%s))
    groups:
      memberOfAttribute: memberOf  # LDAP attribute containing group DNs
Group Extraction

Groups are extracted statically from the memberOf attribute (or the attribute you specify). Each value in this attribute is expected to be a group DN (for example, cn=developers,ou=groups,dc=example,dc=org). The group name (CN part) is extracted and used for portal access control.

Attribute Synchronization​

Attribute synchronization configures which attributes should be extracted and stored by the Traefik Hub platform during authentication. These stored attributes are used for user management and portal functionality.

Important
  • Attribute synchronization requires online connectivity to the Traefik Hub platform. In offline mode, attributes are processed locally for authentication but are not synchronized to the platform.
  • OIDC: You can only synchronize attributes that you've also configured in the claims section. Each item in syncedAttributes must correspond to a claim field you've defined.
  • LDAP: You can only synchronize attributes that you've also configured in the attributes section. Each item in syncedAttributes must correspond to an attribute mapping you've defined.
apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: synced-auth
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.example.com
    secretName: oidc-credentials
    claims:
      groups: groups
      userId: sub
      email: email
      firstname: given_name
      lastname: family_name
    syncedAttributes:
      - groups         # Synchronize group memberships
      - email          # Synchronize email addresses
      - firstname      # Synchronize first names
      - lastname       # Synchronize last names

In this example:

  • The claims section maps JWT claims (groups, sub, email, etc.) to user attributes
  • The syncedAttributes section specifies which of those mapped attributes should be sent to the Traefik Hub platform (online mode only)
  • When users authenticate in online mode, Traefik Hub will extract the groups, email, given_name, and family_name values from their JWT tokens and store them

OIDC Provider Integration​

Configure APIPortalAuth for popular OIDC providers:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: auth0-integration
  namespace: apps
spec:
  oidc:
    issuerUrl: https://your-domain.auth0.com/
    secretName: auth0-credentials
    scopes:
      - openid
      - profile
      - email
    claims:
      groups: https://your-domain.com/groups
      userId: sub
      email: email
      firstname: given_name
      lastname: family_name

---
apiVersion: v1
kind: Secret
metadata:
  name: portal-oidc-secret
  namespace: apps
type: Opaque
data:
  clientId: <base64-encoded-client-id>
  clientSecret: <base64-encoded-client-secret>

LDAP Provider Integration​

Configure APIPortalAuth for popular LDAP servers:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: openldap-auth
  namespace: apps
spec:
  ldap:
    url: ldaps://openldap.example.com:636
    baseDN: dc=example,dc=org
    bindDN: cn=admin,dc=example,dc=org
    bindPasswordSecretName: openldap-bind-secret
    searchFilter: (&(objectClass=inetOrgPerson)(uid=%s))
    groups:
      memberOfAttribute: memberOf
    attributes:
      userId: uid
      email: mail
      firstname: givenName
      lastname: sn
    syncedAttributes:
      - groups
      - email

---
apiVersion: v1
kind: Secret
metadata:
  name: openldap-bind-secret
  namespace: apps
type: Opaque
stringData:
  password: admin-password

Integration with API Portal​

APIPortalAuth with OIDC:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: portal-auth-config
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.company.com
    secretName: portal-oidc-secret
    scopes:
      - openid
      - profile
      - email
      - groups
    claims:
      groups: groups
      userId: sub
      email: email
      firstname: given_name
      lastname: family_name
      company: organization
    syncedAttributes:
      - groups
      - email
      - firstname
      - lastname

---
apiVersion: v1
kind: Secret
metadata:
  name: portal-oidc-secret
  namespace: apps
type: Opaque
data:
  clientId: portal-client-id
  clientSecret: portal-client-secret

---
apiVersion: hub.traefik.io/v1alpha1
kind: APIPortal
metadata:
  name: company-portal
  namespace: apps
spec:
  title: Company API Portal
  description: "Official API documentation portal"
  trustedUrls:
    - https://portal.company.com
  auth:
    name: portal-auth-config  # References APIPortalAuth resource

Developer portal login page with LDAP authentication form

Configuration via Dashboard UI​

You can also configure LDAP portal authentication through the Traefik Hub Dashboard UI in addition to using CRDs.

UI vs CRD Configuration
  • UI Configuration: Convenient for quick setup and testing, configuration stored in Traefik Hub platform. The UI setting is global for the entire workspace and applies to all API Portals across all clusters and namespaces.
  • CRD Configuration: Infrastructure as Code approach, version controlled, essential for offline environments. APIPortalAuth CRDs are namespace-scoped, allowing different portal authentication methods per cluster or per namespace within the same workspace.
  • Precedence: CRD configuration takes precedence over UI configuration when both are defined

This namespace-scoped approach enables advanced scenarios like having an Auth0-authenticated portal in the public namespace, an Azure AD-authenticated portal in the internal namespace, and an LDAP-authenticated portal in the partners namespace - all within the same workspace on the same gateway.

Validation​

Use the Traefik Hub static analyzer to validate your APIPortalAuth configuration:

hub-static-analyzer lint --path [path/to/manifests] --offline

The analyzer will ensure all APIPortal resources have an APIPortalAuth attached.

Migration from Traefik Hub Online Dashboard Configuration​

Migrating OIDC Configuration​

When migrating from online dashboard portal authentication to APIPortalAuth CRDs:

  1. Export Current Settings: Note your OIDC configuration from the online dashboard
  2. Create APIPortalAuth Resource: Convert dashboard settings to APIPortalAuth CRD format
  3. Create Client Secret: Store OIDC client credentials in Kubernetes Secret
  4. Update APIPortal: Reference the APIPortalAuth resource in your APIPortal
  5. Test Authentication: Verify portal authentication works correctly

OIDC Migration Example​

Traefik Hub Online Dashboard OIDC configuration:

  • Issuer: https://auth.company.com
  • Client ID: portal-client
  • Groups claim: groups
  • Email claim: email

Equivalent APIPortalAuth CRD:

apiVersion: hub.traefik.io/v1alpha1
kind: APIPortalAuth
metadata:
  name: migrated-auth
  namespace: apps
spec:
  oidc:
    issuerUrl: https://auth.company.com
    secretName: migrated-oidc-secret
    claims:
      groups: groups
      email: email

---
apiVersion: v1
kind: Secret
metadata:
  name: migrated-oidc-secret
  namespace: apps
type: Opaque
data:
  clientId: portal-client
  clientSecret: your-client-secret

Migrating LDAP Configuration​

When migrating LDAP portal authentication from the dashboard to CRDs:

  1. Export Current Settings: Note your LDAP configuration from the online dashboard
  2. Create APIPortalAuth Resource: Convert dashboard settings to APIPortalAuth CRD format
  3. Create Bind Secret: Store LDAP bind password in Kubernetes Secret
  4. Update APIPortal: Reference the APIPortalAuth resource in your APIPortal
  5. Test Authentication: Verify portal login works correctly with LDAP credentials

Related Content​
